80*100mm Hole Size Gabion Box Retaining Wall 2.0m Length Wire Woven

Name: 80100mm Hole Size Gabion Box Retaining Wall 20m Length Wire Woven
Brand: HGMT
Price: 1 USD

Buy cheap 80*100mm Hole Size Gabion Box Retaining Wall 2.0m Length Wire Woven product

Brand Name : HGMT

Model Number : GF134

Certification : ISO9001:2008

Place of Origin : CHINA

MOQ : 50sets

Price : Negotiable

Payment Terms : L/C, D/P, T/T, Western Union

Supply Ability : 5000m/week

Delivery Time : 25days

Packaging Details : in bulk, in container,

Material : galvanzied wire /glafan wire /PE or pvc coated wire

wire diameter : 3.0mm,3.5mm,4.0mm,4.5mm,5.0mm，6.0mm

hole size : 60*80mm,80*100mm.100*120mm

box hight : 0.3m,0.5m.1.0m,1.5m

color : balck9005, green6005

Contact Now

Product Description

Gabion box consists of rectangular units, fabricated from a double twisted hexagonal mesh. Filled with stones, gabion basket become large, flexible and permeable elements from which a broad range of structures may be built. Gabion Baskets and Gabion mattresses are widely used for hydraulic and geo-technical control such as retaining walls, riverbank protections, weirs, channel linings etc.

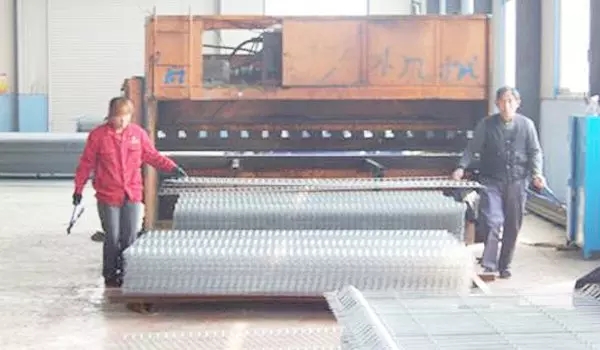

Process

80*100mm Hole Size Gabion Box Retaining Wall 2.0m Length Wire Woven

Specification

Mesh Size cm	Wire Dia.			Nominal Dimensions			Number of Cells	Capacity m³	The Tolerance
Mesh Size cm	Mesh Wire cm	Selvage Wire mm	Tie wire mm	Length m	Width m	Height m	Number of Cells	Capacity m³	The Tolerance
6×8 8×10 10×12	2.0 2.2 2.4 2.7 3.0	2.4 2.7 3.0 3.4 3.9	2.0 2.0 2.0 2.2 2.4	2.0	1.0	0.5-0.3	1	0.3-0.6	Length: +/-3% Width: +/-5% Height: +/-5%
				3.0	1.0	0.15-0.3	2	0.45-0.9
				4.0	1.0	0.15-0.3	3	0.6-1.2
				2.0	1.0	0.5	1	1.0
				3.0	1.0	0.5	2	1.5
				4.0	1.0	0.5	3	2.0
				1.0	1.0	1.0	0	1.0
				1.5	1.0	1.0	0	1.5
				2.0	1.0	1.0	1	2.0
				3.0	1.0	1.0	2	3.0
				4.0	1.0	1.0	3	4.0
Binding wire : 2% weight of gabion box
All sizes and dimensions are nominal

Gabion box, Gabion mattress, Gabion rolls all available

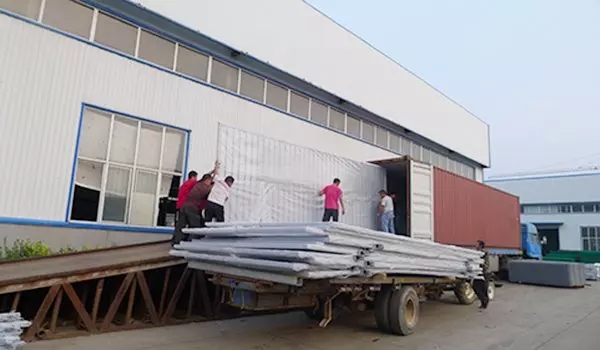

Package

1. In buik

2. Pallet packing

3. According your requests.

80*100mm Hole Size Gabion Box Retaining Wall 2.0m Length Wire Woven

Company Introduction

Hebei Giant Metal Technology Co.,Ltd is located in the "Wire Mesh Homeland of China" - Anping County of Hebei, China, and belonged to the CHANGMING group.
Created and managed by the a group of ambitious youth, the company determines to turn the GM into a new style, creative and influential Chinese wire mesh company in 21 century.
Our company mainly produces and sells metal wire mesh and the relative products, like wire mesh fence panels, chain link fence, temporary fence, horse fence, high security fence, palisade, zinc steel fence and welded wire mesh panels. Which exported mainly to a dozen of countries and districts including the USA, EU, Latin America and Japan, etc.
We insist on the technology creation and management and conception innovation to cope with the fierce market competition and changing client needs.
Since the foundation of our company, we always adhere to the principle of reputation as the basis, strategy of development through quality, improvement boosted by meditation and pursuing the future based on learning.
We welcome new and previous customers from all walks of life to contact us for future business relationships and mutual success!

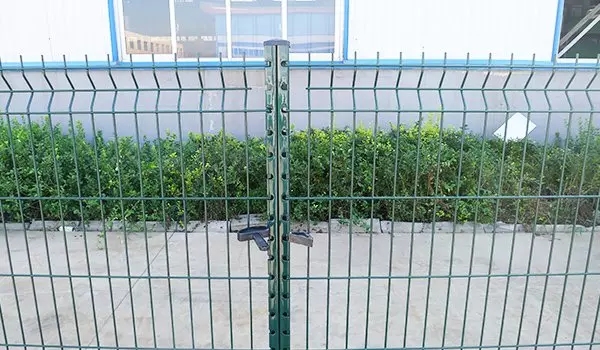

CM Post
CM post name from “ CHANGMING” brand. It is our new type product developed in 2013.
The CM post is very popular because of fashionable design, strong quality and convenient installation without any clamps.We believe that we will develop more new products in the future!
